Servo Dynamixel series

X series P series AX/MX series

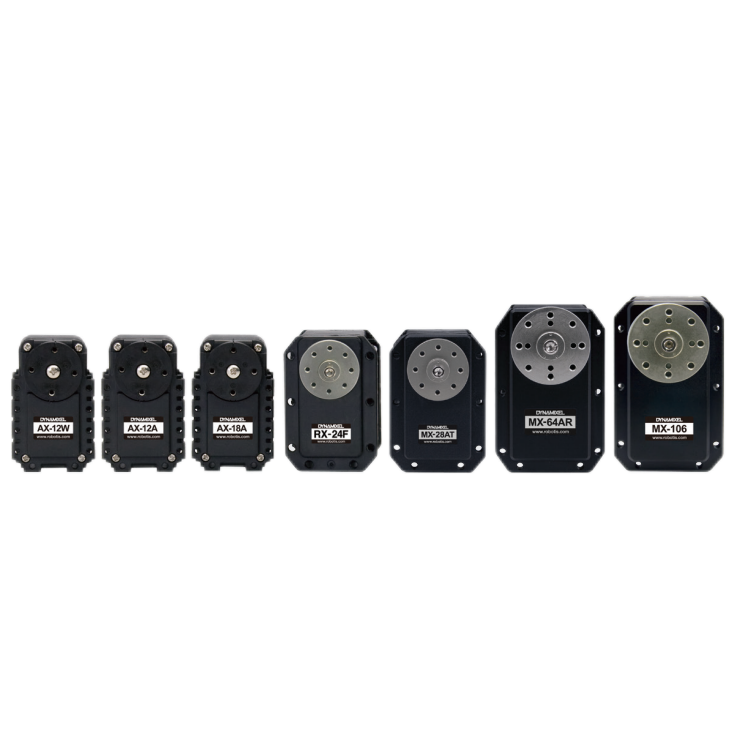

DYNAMIXEL is produced by ROBOTIS company in South Korea. It is an intelligent actuator for robots. It includes DC motor + reduction gear + controller + driver + sensor + communication circuit. These servos vary in size, output, accuracy and communication methods. The DYNAMIXEL-XH/XM series provides a variety of control technologies based on high-performance current sensing algorithms. It adopts aluminum shell and adopts new technologies such as hollow cable fastening structure, which is convenient for users to use. The DYNAMIXEL-P series realizes a detachable reduction cycloid gear, which has high precision and impact resistance. DYNAMIXEL AX/MX series are used in ROBOTIS STEM, Premium and GP. Using the AX/MX series, you can easily create various types of robots, such as humanoid robots, quadruped robots and hexapod robots.

Features

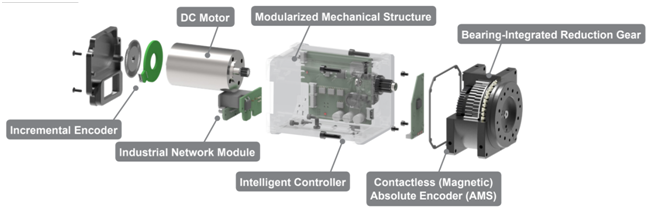

Integrated design structure
Flow motor + reduction gear + controller + driver + sensor + communication circuit

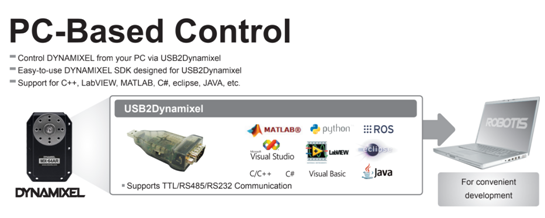

Network drive
Each DYNAMIXEL is controlled by sending data packets through a single bus. Support TTL and RS485 network.
Multiple control modes
Control torque from minimum to maximum allowable torque value. Accurate and reliable PID control. MX-64 and MX-106 models provide speed and position dual-loop current control. The X series supports 6 operation modes, current-based torque control (4096 steps, 2.69mA/step), contour control of smooth motion planning, trajectory data and motion status (position, following error, etc.), and it is more energy-efficient.
Simple connection knot
Allows easy wiring and expansion, non-contact (magnetic) absolute encoder (through AMS) 12-bit resolution, 360-degree working range, ultra-durability. Maxon motor, 32-bit controller, high communication speed RX and EX series compatible.

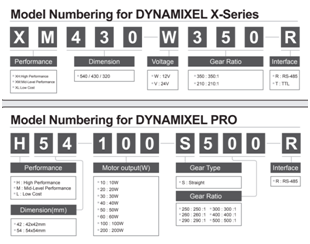

Technical index

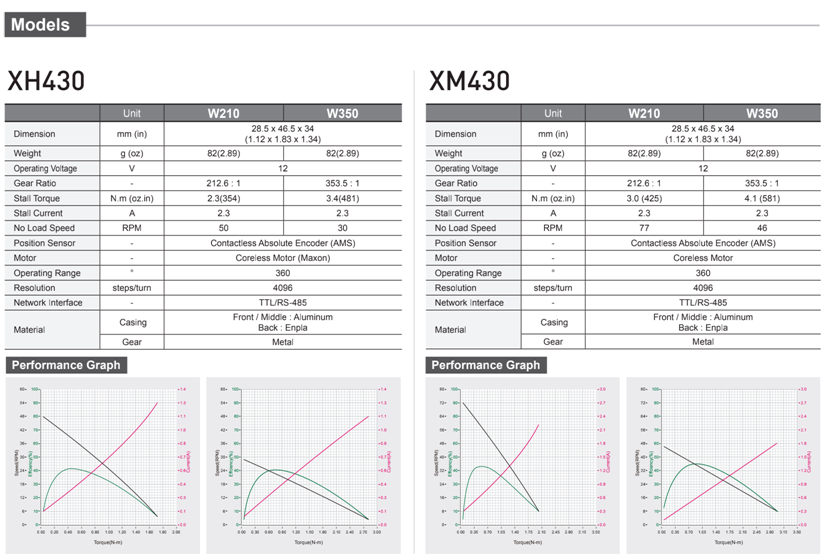

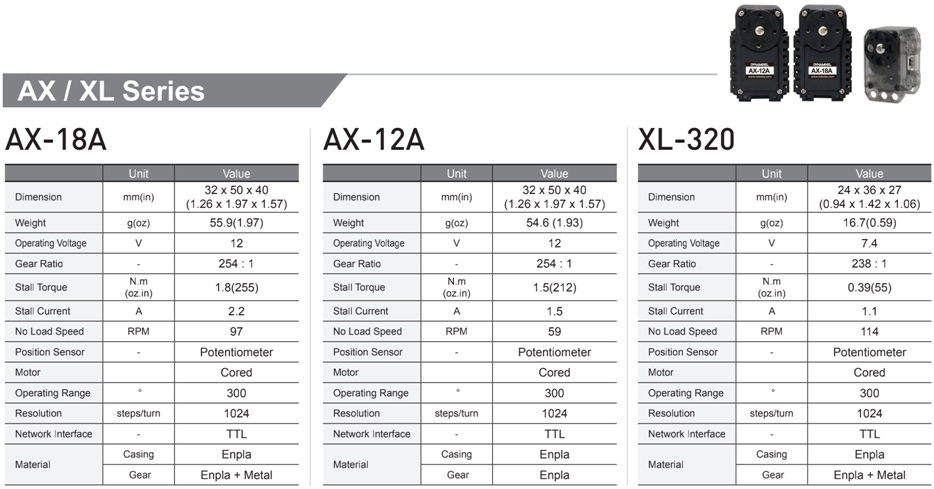

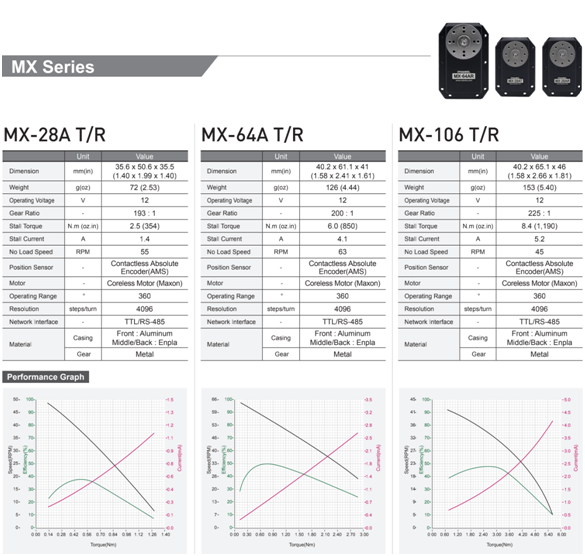

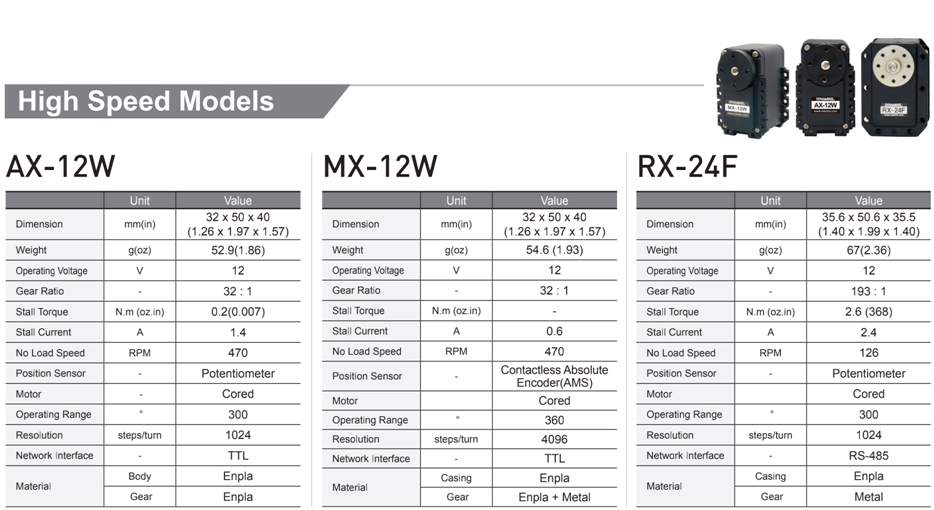

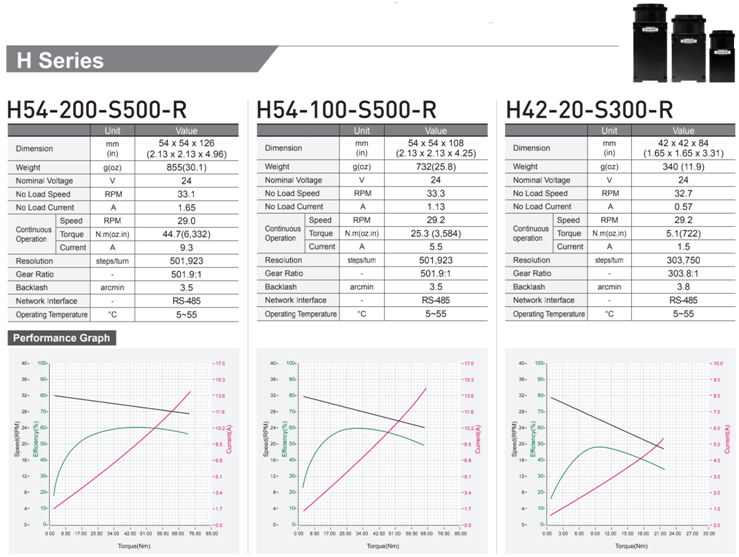

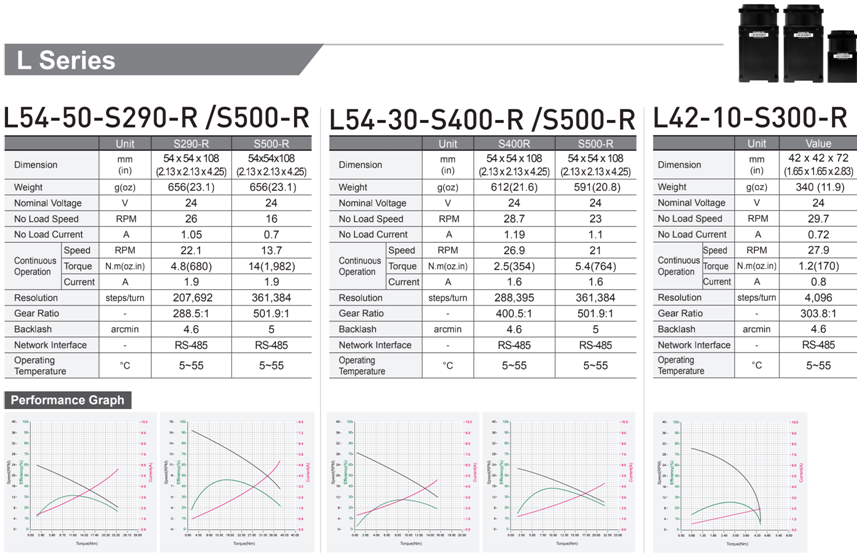

Technical parameters

技术指标










See our robots working in the most demanding environments for researchers around the world.
Data download
AX-12A

AX-12W

AX-18A

Brochure_ROBOTIS_DXL_EN_ver1751

EX-106+

MX-12W

MX-28

MX-28AT

MX-64

MX-64AT

MX-106

RX-24F

RX-28

XL-320

RX-64

ROSCon2018_Lightning1_11
