UNMANNED GROUND VEHICLE

Jackal

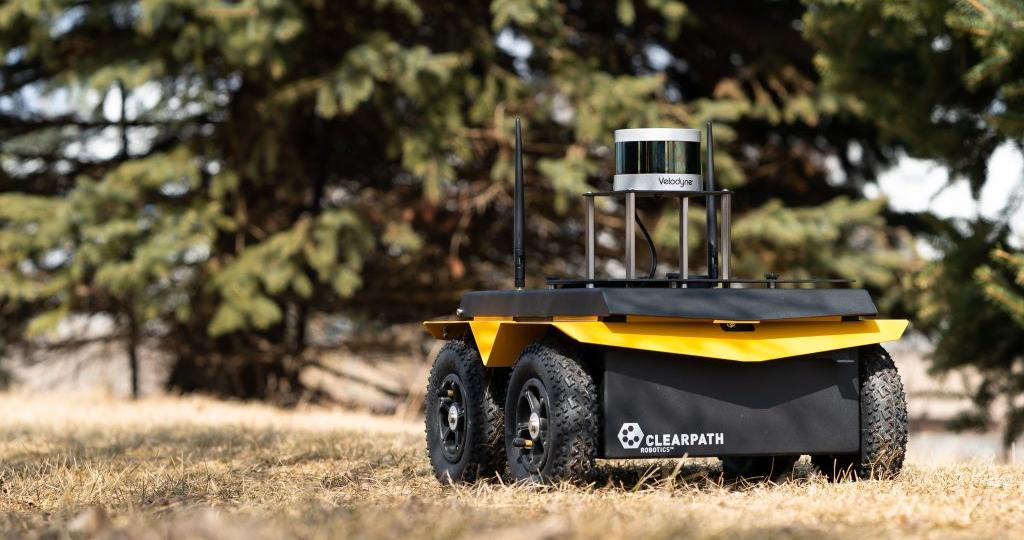

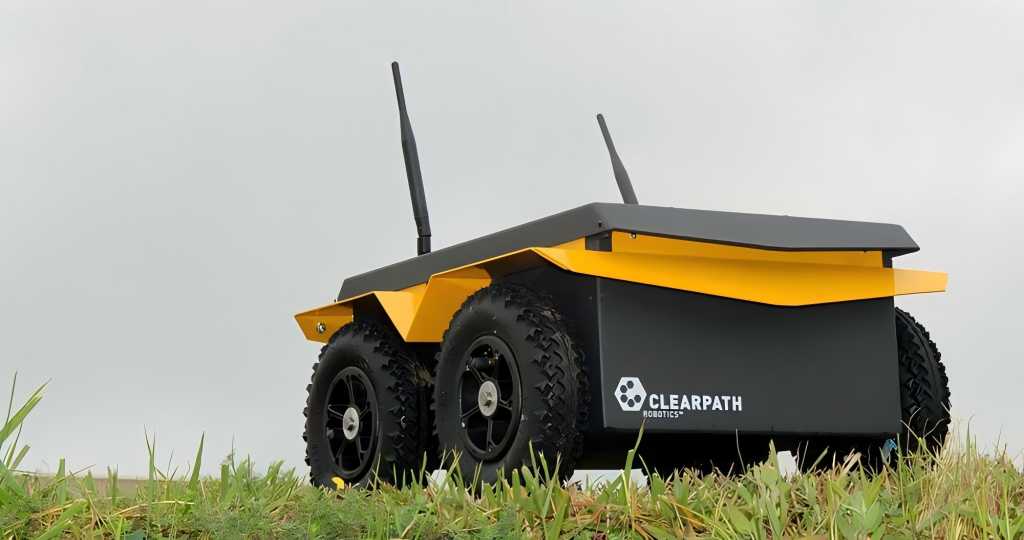

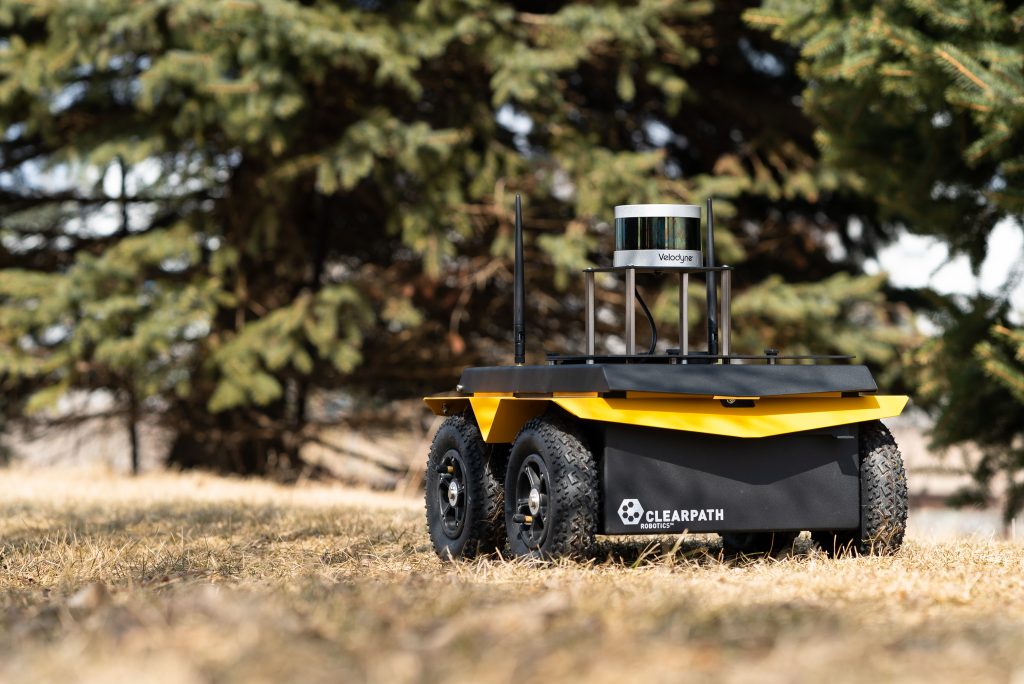

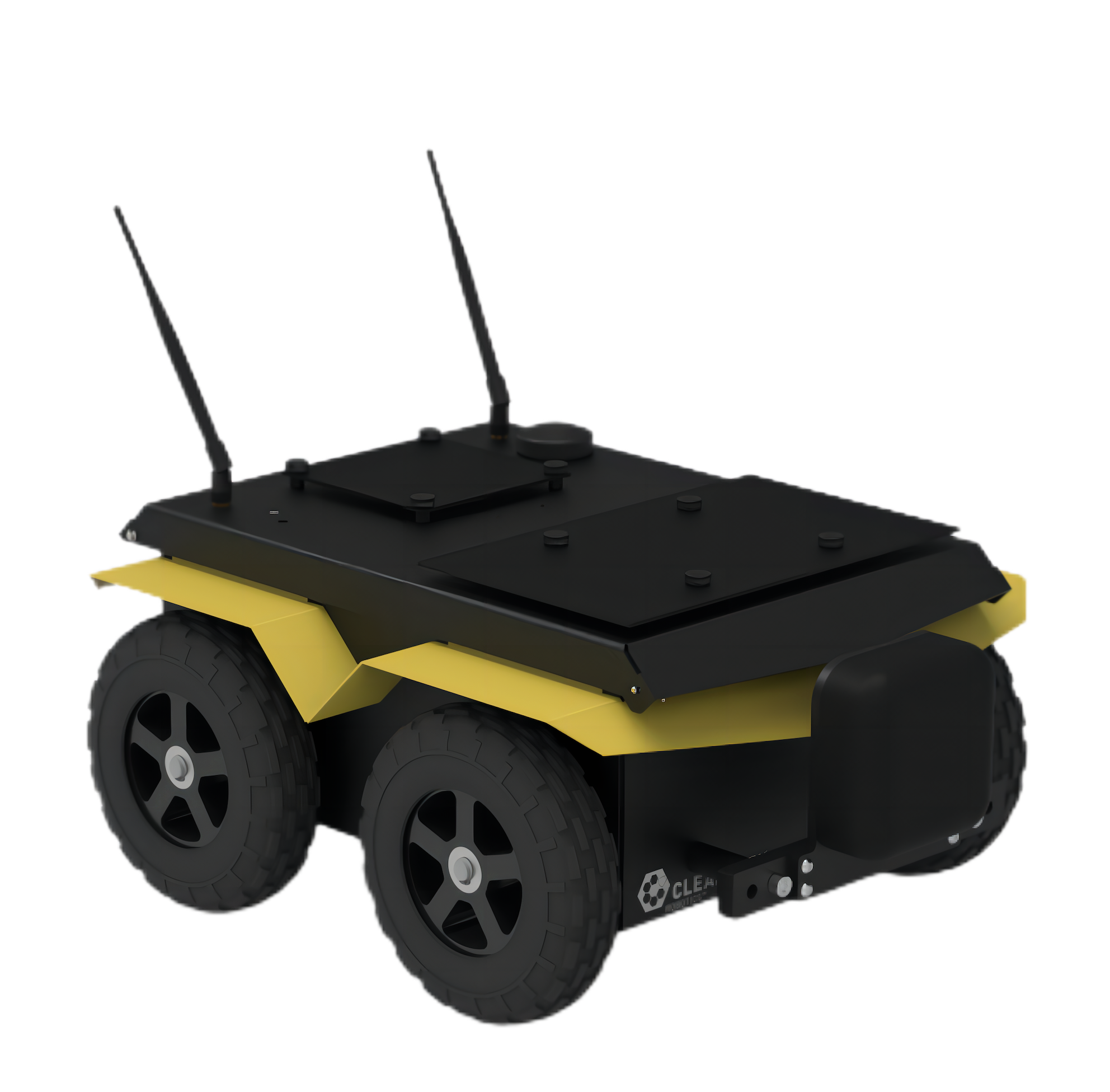

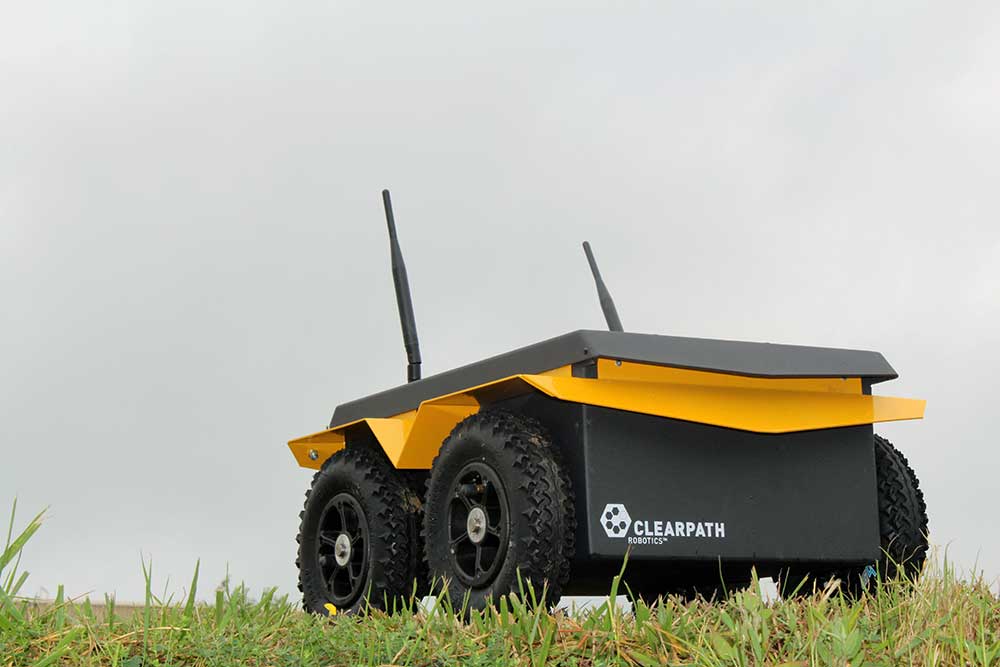

Jackal is a small, fast, entry-level field robotics research platform. It has an onboard computer, GPS and IMU fully integrated with ROS for out-of-the-box autonomous capability. As with all Clearpath robots, Jackal is plug-and-play compatible with a huge list of robot accessories to quickly expand your research and development.

Features

Powerful and compact
Add sensors, cameras and other accessories to Jackal's simple installation platform, use 5V, 12V or 24V power options, and easily connect cables to the built-in onboard PC. Want to expand? The internal area can be used for additional computing power or storage.

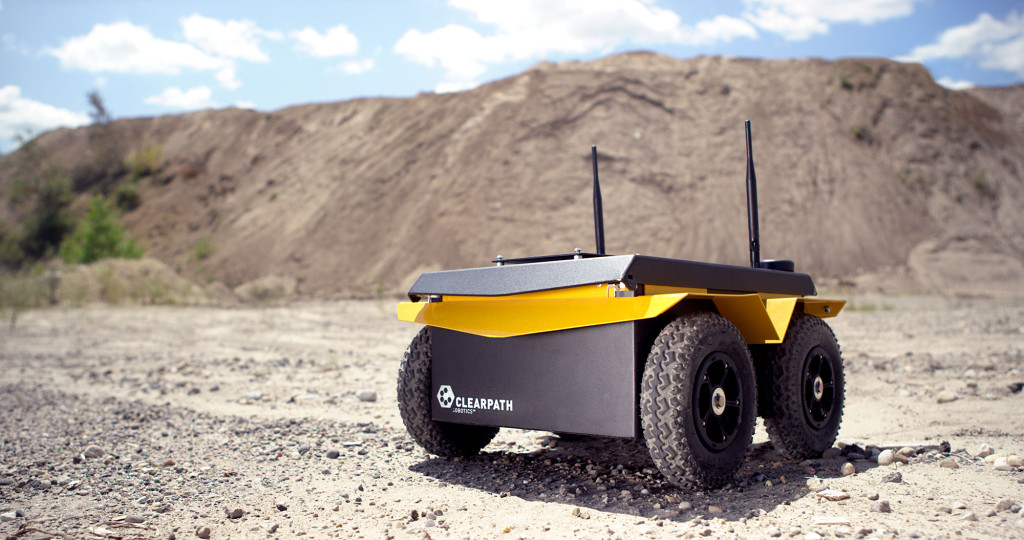

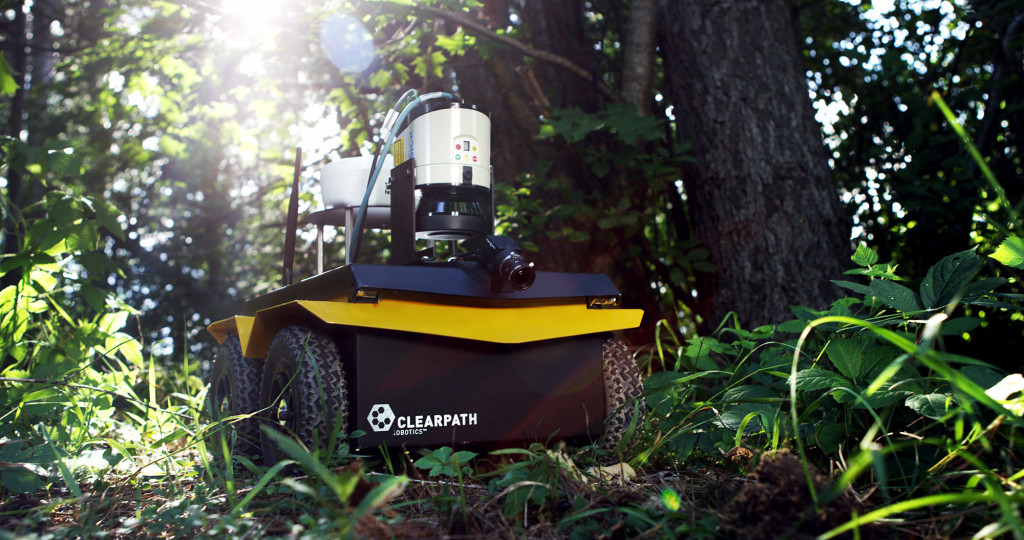

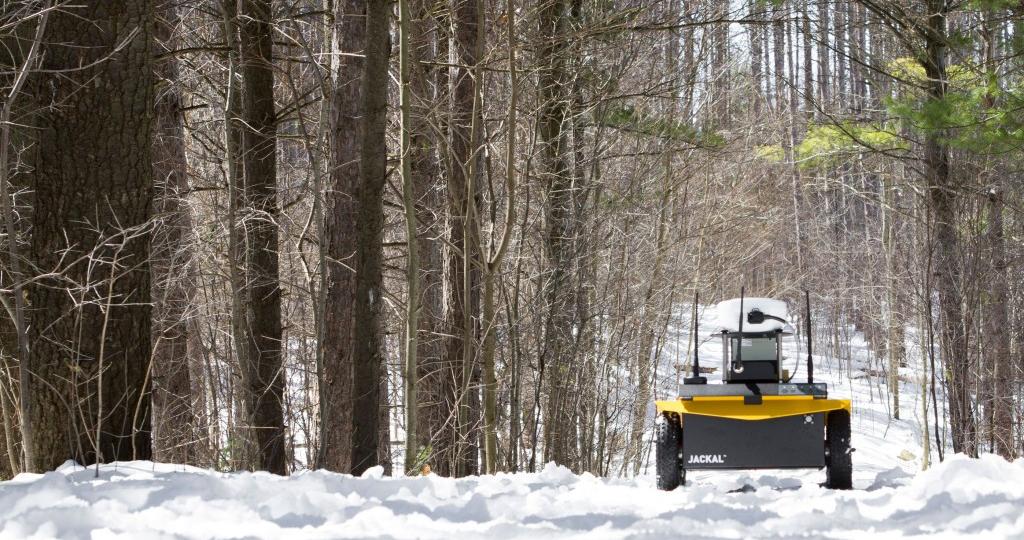

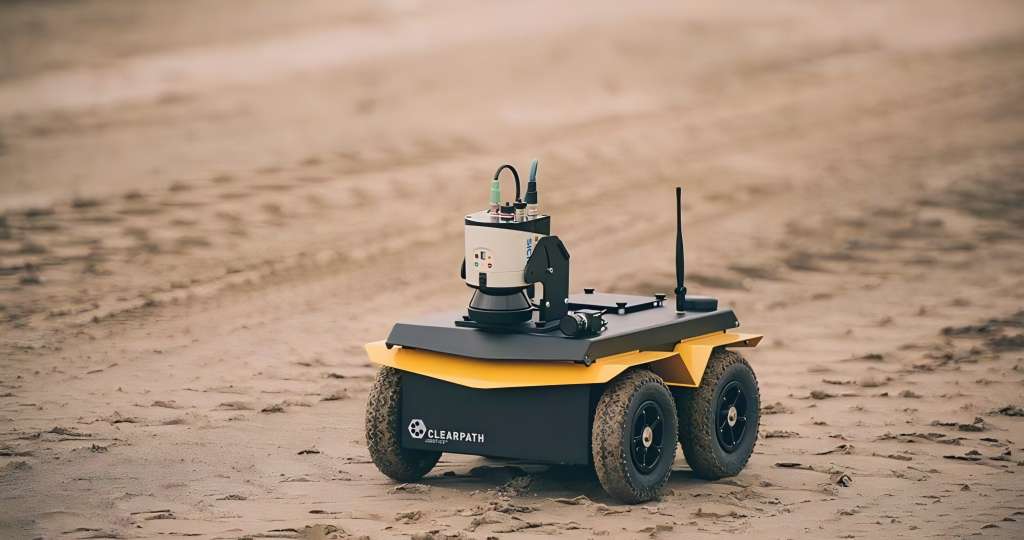

All terrain and weatherproof
Jackal is made of a sturdy aluminum chassis that uses a high-torque 4×4 transmission system for rugged all-terrain operation. It has an IP62 weatherproof enclosure and a rated operating temperature of -20 degrees Celsius or +45 degrees Celsius. All connections are made through compressed foam cable management ports to communicate with external payloads without the need for complex sealing.
Customizable accessories
Choose from an extensive list of compatible sensors, cameras, and other accessories to integrate through Jackal's simple installation interface. Use 5V, 12V or 24V power options, easily connect to the built-in onboard PC, the internal area can be used for additional computing power or storage.
TURNKEY
Jackal的机载PC配备齐全,因此您可以将ROS与RVIZ GUI和Gazebo模型快速同步,使用Jackal广泛的演示代码可跳过数周的设置并直接跳转进入您的研究,通过蓝牙和wifi进行无线连接,Jackal随时可以开启。

Technical index

Technical parameters

EXTERNAL DIMENSIONS

508 x 430 x 250 mm
(20 x 17 x 10 in)

INTERNAL DIMENSIONS

250 x 100 x 85 mm
(10 x 4 x 3 in)

MAXIMUM PAYLOAD

20 kg
(44 lbs)

MAX SPEED

2.0 m/s
(6.6 ft/s)

RUN TIME (BASIC USAGE)

4 hours

USER POWER

5V at 5A, 12V at 10A, 24V at 20A

DRIVERS AND API

ROS, Mathworks

Fittings
Configure a custom platform. Explore all accessories.

Bumblebee Stereo Camera

Point Grey

SMART 7-L GPS

NovAtel

LMS-111 Lidar

SICK

MICO Manipulator

Kinova

Parcel
Preconfigured packages provide everything you need to start quickly. I don't know what you're looking for? Visit our sensors and components to store or contact us.
  • Jetson TX2 Developer Package
  • Explorer Package
  • Vision Package
  • Navigator Package
FEATURED UPGRADES

+ LMS111 laser range finder
+ Flea3 camera
+ 3DM-GX3-25 IMU
+ BumbleBee stereo camera

EXAMPLE APPLICATIONS

+ VSLAM
+ Machine Learning / AI
+ 3D Imaging

JETSON TX2 DEVELOPER PACKAGE

We’ve partnered with NVIDIA to offer a Jackal built around the Jetson TX2: a fast, efficient computing device, ideal for robotics development. The JETSON TX2 developer package takes advantage of NVIDIA’s standard hardware interfaces and graphics processing capabilities. Built around a powerful GPU and loaded with 8GB of memory and 59.7 GB/s of memory bandwidth, the Jetson is the preferred computing platform for VSLAM, 3D imaging and machine learning applications.

FEATURED UPGRADES

+ Onboard computer upgrade
+ BumbleBee stereo camera
+ SMART-6 RTK
+ HDL-32e 3D laser scanner

INCLUDED ACCESSORIES

+ LMS111 laser range finder
+ SMART7-L GPS
+ Flea3 camera
+ 3DM-GX3-25 IMU

EXAMPLE APPLICATIONS

+ Ground up robotics research and development
+ Integration of sensors, manipulator or scientific equipment

EXPLORER PACKAGE

The Jackal Explorer Package is designed for basic autonomous operation in both indoor and outdoor environments. Applications range from GPS waypoint navigation with laser-based collision avoidance, to indoor mapping and path planning. A powerful Mini-ITX computer system comes pre-installed with Linux and ROS; all component ROS drivers are installed and pre-configured.

FEATURED UPGRADES

+ BumbleBee Stereo Camera
+ 3DM-GX3-25 IMU
+ Sensor Mast (designed to specification)

INCLUDED ACCESSORIES

+ 2 x Flea3 Cameras
+ GTX 750ti Graphics Card (or better)
+ High Performance Computer

EXAMPLE APPLICATIONS

+ Machine vision
+ Human robot interaction
+ Visual SLAM (VSLAM)

JACKAL VISION PACKAGE

The Jackal Vision Package includes two front-facing Flea3 cameras for stereo vision, an upgraded GPU graphics card and a high performance computer. This package comes with a pre-installed CUDA toolkit, and is fully supported with ROS, RViz (visualization), and Gazebo (simulator).

FEATURED UPGRADES

+ Onboard computer upgrade
+ LMS111 laser range finder
+ Flea3 camera
+ 3DM-GX3-25 IMU

INCLUDED ACCESSORIES

+ SMART-7 RTK
+ Long range broadband communication transceiver
+ Long range wireless network station with RTK Upgrade

EXAMPLE APPLICATIONS

+ Outdoor navigation
+ Multi-robot systems
+ Remote environmental inspection

NAVIGATOR PACKAGE

The Jackal Navigator Package combines a high-end RTK (real-time kinematic) GPS system with a long-range base station to enable localization accuracy to less than 1 in (2 cm) and remote communication up to 0.62 mi (1 km).

See our robots working in the most demanding environments for researchers around the world.
